DERBI GPR 50 2T

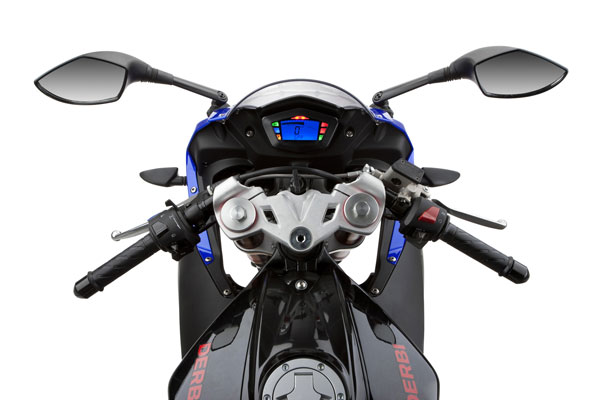

Motor ini merupakan adik kandung dari Derbi GPR 125. Motor ini hanya 50 cc, seperti Aprilia RS 50. Berikut ini gambarnya







Engine Single cylinder 2Stroke
Bore x stroke 39,86 x 40 mm
Displacement 49,9 cc
Power 6,3 kW / 10.000 rpm
Torque 5,9 Nm / 9.000 rpm
Fuel Supply Ø17,5 Carburettor
Cooling System Liquid
Starting System Electric starter
Compression Ratio 11,5:1
Fuel Unleaded petrol
Lubrication System Mechanical oil pump
Clutch Multi-plate Gear Box 6 speeds
Frame Tubular steel cradle
Swingarm -
Front Suspension Ø40mm hidraulic fork 110mm travel
Rear suspension Monoshock 120 mm wheel travel
Front brake Disk Ø 300 mm
Rear brake Disk Ø 218 mm
Tyres Front: 100/80x17"
Rear: 130/70 x 17"
Maximum Lenght 2.015 mm
Seat height 810 mm
Maximun width 720 mm
Wheelbase 1.360 mm
Fuel Tank 13 L (reserve: 1,5L)
Dry weight 110 kg
